Description

• Series: AFL
• Ingress Protection: IP56
• Part Status: Active
• Voltage Rated: 24 VDC
• Width: 78.50mm
• Air Flow: 437.00CFM (12.40 m3/min)
• Static Pressure: 0.460 inchH2O (11.70 mmH2O)
• Bearing Type: Ball
• Fan Type: Axial
• Features: Locked Rotor Sensor
• Noise: 57.0 dB(A)
• Power (Watts): 24.00 W
• RPM: 2200 RPM
• Termination: 4 lead wires
• Operating Temperature: -40~+60⁰C
• Weight gram (g): 780
• Voltage Rating: 21.6-26.4VDC
• Material Frame: Plastic
• Material Blade: Plastic
• Lifetime @ Temp: 70000 Hrs@40°C

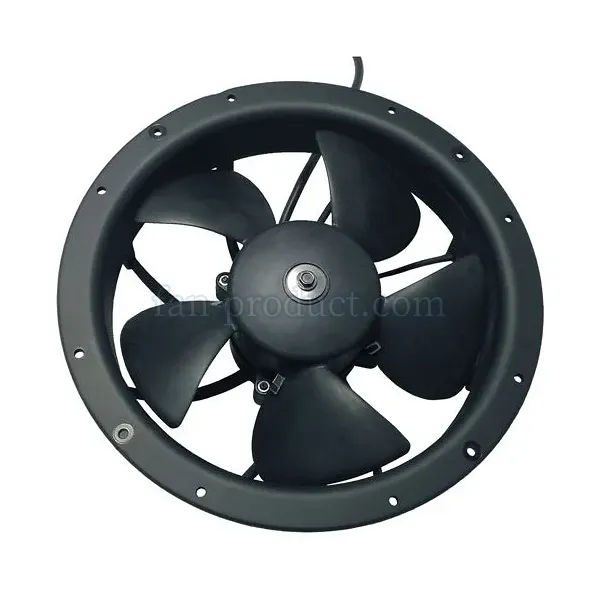

• Image Filename: afl2524hw-00.png
• Power (W): 24.00 W
• Voltage (VDC): 24 VDC
• Air Pressure(in H2O): 0.460 inchH2O (11.70 mmH2O)
• Air Flow (CFM): 437.00CFM (12.40 m3/min)
• Dimension(mm): Ø250*H80 (Ø200 impeller)
• Operating Voltage Range (VDC): 21.6 – 26.4 VDC
• Noise (dB-A): 57.0 dB(A)
• Speed (RPM): 2200 RPM
