Description

• Max. Speed (RPM): 5900 RPM
• Part Status: Active
• Voltage Rated: 5 VDC

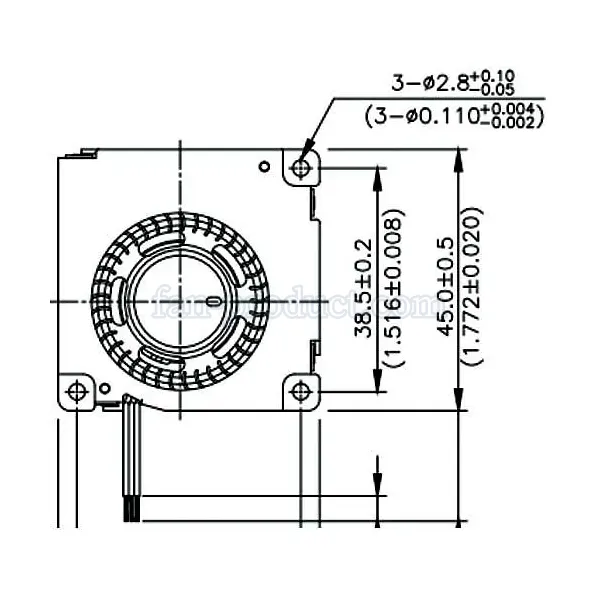

• Width: 10.30mm
• Air Flow: 3.49 CFM (0.099 m3/min)
• Static Pressure: 0.560 inchH2O (14.22 mmH2O)
• Bearing Type: Ball
• Fan Type: Blower
• Features: Speed Sensor (Tach)
• Noise: 35.5 dB(A)
• Power (Watts): 1.25 W
• RPM: 5900 RPM
• Termination: 3 lead wires
• Operating Temperature: —
• Weight gram (g): -10~+70⁰C
• Voltage Rating: 0.25 A
• Material Frame: 4.5 – 5.5 VDC
• Material Blade: Plastic
• Lifetime @ Temp: Plastic
• Image Filename: 30000 Hrs@40°C
• Spec Sheet: https://www.delta-fan.com/pub/media/catalog/product/cache/6360e336b2a70951114dbd37294096ee/b/f/bfb04505hha-cf00.jpg
• Unnamed: 34: /Download/3D/BFB04505HHA-CF00.stp
