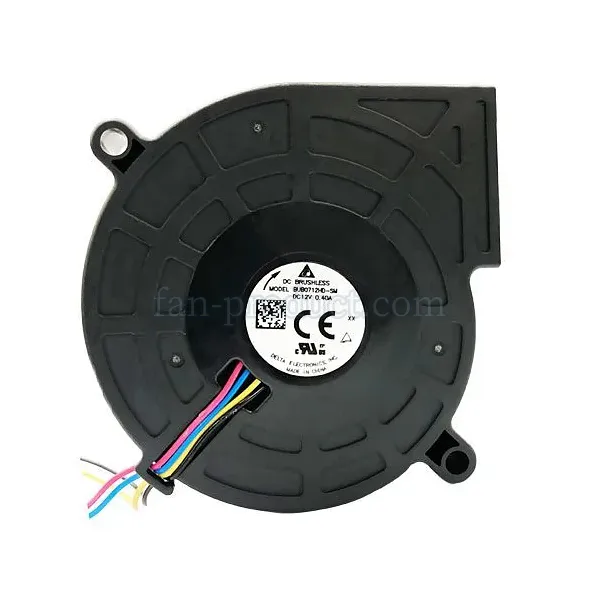

Description

• Series: BUB
• Impeller Diameter (mm): 10.0
• Max. Speed (RPM): 3800 RPM
• Certification: UL-BUB0712HD-SM.pdf,CE-BUB0712HD-SM.pdf,TUV-BUB0712HD-SM.pdf
• Part Status: Active
• Voltage Rated: 12 VDC
• Width: 20.00mm
• Air Flow: 10.21CFM (0.289 m3/min)
• Static Pressure: 0.831 inchH2O (21.100 mm H2O)
• Bearing Type: Sleeve
• Fan Type: Blower
• Features: PWM Control, Speed Sensor (Tach)
• Noise: 41.5 dB(A)
• Power (Watts): 3.12 W
• RPM: 3800 RPM
• Termination: 4 lead wires
• Operating Temperature: —
• Weight gram (g): -10~+70⁰C
• Voltage Rating: 0.26 A
• Material Frame: 10.8 – 12.6 VDC
• Material Blade: Plastic
• Lifetime @ Temp: Plastic
• Image Filename: 50000 Hrs@70⁰C
