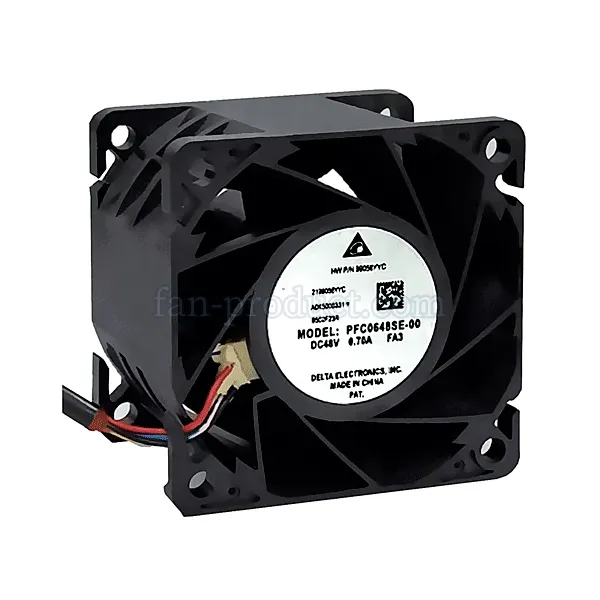

Description

• Series: PFC
• Impeller Diameter (mm): 10.0
• Max. Speed (RPM): 17000 RPM
• Ingress Protection: IP68
• Certification: UL.pdf
• Part Status: Active
• Voltage Rated: 48 VDC
• Width: 38.00mm
• Air Flow: 65.35 CFM (1.851 m3/min)
• Static Pressure: 3.503 inchH2O (88.98 mmH2O)
• Bearing Type: Ball
• Fan Type: Axial
• Features: PWM Control, Speed Sensor (Tach)
• Noise: 69.0 dB(A)
• Power (Watts): 24.96 W
• RPM: 17000 RPM
• Termination: 4 lead wires
• Operating Temperature: IP68
• Weight gram (g): -25~+70⁰C
• Voltage Rating: 0.52 A
• Material Frame: 36.0 – 60.0VDC
• Material Blade: Plastic
• Lifetime @ Temp: Plastic
• Image Filename: 70000 Hrs@40°C
