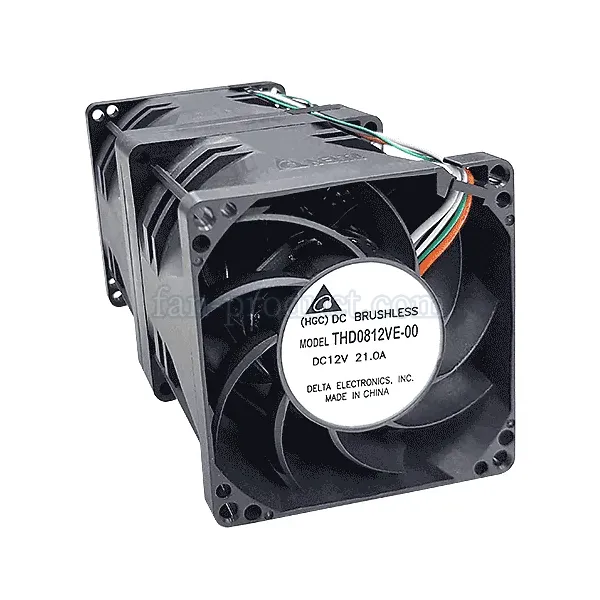

Description

• Series: THD
• Impeller Diameter (mm): 10.0
• Max. Speed (RPM): 15000 RPM
• Ingress Protection: IP51
• Certification: UL.pdf
• Part Status: Active
• Voltage Rated: 12 VDC
• Width: 80.00mm
• Air Flow: 195.00CFM (5.522m3/min)
• Static Pressure: 7.480 inchH2O (190.00 mmH2O)
• Bearing Type: Ball
• Fan Type: Axial
• Features: PWM Control, Speed Sensor (Tach)
• Noise: 78.5 dB(A)
• Power (Watts): 180.00 W
• RPM: 15000 RPM
• Termination: 8 lead wires
• Operating Temperature: IP51
• Weight gram (g): -40~+70⁰C
• Voltage Rating: 15.0 A
• Material Frame: 10.8 – 13.2 VDC
• Material Blade: Plastic
• Lifetime @ Temp: Plastic
• Image Filename: 70000 Hrs@40°C
